| Seal Profile: | TC OIL SEAL | Type: | Hydraulic |
|---|---|---|---|
| Lip: | Double Lips | Temperature: | NBR -20℃ / +100℃ FKM:-20℃ / +200℃ |
| Material: | NBR/FKM,IRON | Acting: | Double |
| Pressure: | <20 MPa | Media: | Hydraulic Oils (mineral Oil-based) ,gas |
| Speed: | ≤ 1 M/s | Color: | NBR:Blalck FKM:Brown |
TC seal is a typical double lip oil seal, It has one sealing lip and one wiper lip.
TC oil seal is made of a rubber jacket and a metal framework,it was attached to the oil seal seat to move relative to the rotating shaft. Applied for the sealing of lubricants, greases, water and other media, the rotating shaft skeleton oil seal is an essential component in the lubrication of the rotary motion.
NBR and FKM/FPM is the two normal rubber material.
Technical Data:
| Temperature | NBR: -20 to +100℃,FKM:-20 to +200℃ |
| Speed | ≤ 20 m/s |
| Working pressure | ≤0.1 Mpa |
| Color | Black and FKM brown |
| Size | Standard and non-standard |
| Media | Hydraulic oils (mineral oil-based) |

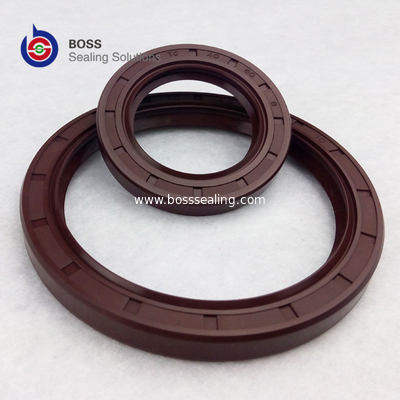

TC seal photo details:
Other oil seal profiles:
TA/TB/TC,SA,SB,SC,DB,DC,TCN,etc.
