Home ProductsSpring Energized Seals

Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals

I'm Online Chat Now

Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals

China  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier
 Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals supplier

Large Image :  Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals

Product Details:

Place of Origin: CN
Brand Name: BOSS
Certification: ISO9001
Model Number: spring seal,spring energized seal,u seal,u ring

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: $0.2-$5 per pc
Packaging Details: inside:plastic bags;outside:carton box
Delivery Time: 15-20 days
Payment Terms: T/T,Western Union,Paypal,others
Supply Ability: 300,000pcs per month
Contact Now
Detailed Product Description
Standard Or Nonstandard: Standard Style: O Ring
Seal Type: Spring Seal,spring Energized Seal,variseal,u Seal Color: Green,coffee,brown,black,gray,others
Material: PTFE,NBR,FKM,springs,sus304 Temperature: -40-+260℃
Speed: ≤15m/s Pressure: ≤45MPa
Cerfiticate: ISO9001:2008 Orgin: Made In China
Company Type: Seal Manufacturer
High Light:

Spring Energized U Seal

,

u seal

,

u ring

Energized PTFE seals offer extreme-temperature, high-pressure, chemically inert, static and dynamic seals for the most demanding applications. Our thin, flexible PTFE sealing jacket, made resilient by an internal energizing spring, applies a load to the sealing element at low pressures. As the system pressure increases, the spring engages to create a highly efficient seal against the mating surface. The spring provides permanent resilience to the seal jacket and compensates for jacket wear, hardware misalignment or eccentricity.


Properites:

Product Name Spring Energized PTFE Seals Black White Brown Color PTFE/Carbon filled PTFE SE Seals
Materials PTFE,PTFE+Bronze,PTFE+MoS2,PTFE+Glass Fiber,PTFE+Carbon/Graphite, Stainless Steel(SS304,SS316)
Properties Low friction, Free of stick slip, High abrasion resistance, Wide temperature Range, Good thermal conductivity, Low wear and high extrusion resistance, Wide fluid application range, Resistance against cold flow.
Temperature -40~+260°C
Color brown,green,black,white,blue etc.
Size various and custom
Delivery time 15-20 days by express after payment
Payment L/C, T/T, Western Union, Money Gram, paypal
Shipping By airplane, ship.
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
Application

1.Mobile Hydraulics.
2.Injection moulding machines.
3.Machine tools.
4.Material Handling Equipments.



Air compressor,Excavtors,hydraulic cylinders,pneumatic cylinders,earth moving equipments...





We supply various types and sizes.

The free sample is available .

If you do not find the seals you need,just contact me,and I will find out the right one for you.

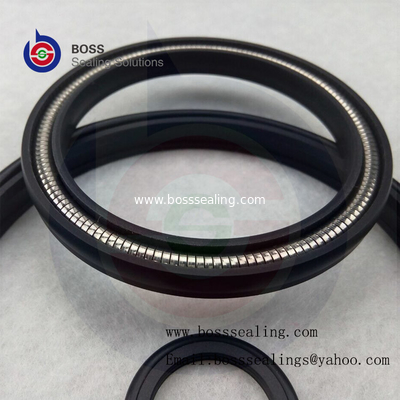

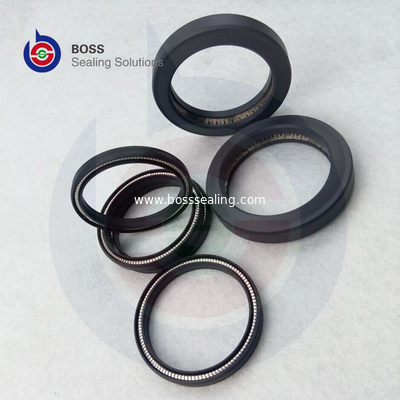

PHOTOS:

 Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals

 Spring Energized U Seal,Spring Energized U Ring,PTFE Hydraulic Spring activated Seals
